5 code trim tag decoder
Select the corresponding check boxes below.



BLOCK 0 or 1

D
E
L
O
T
V
W
X
Y

BLOCK 2

A
B
C
E
F
G
H
K
L
R
S
T
U
V
W
Z

BLOCK 3

B
C
D
F
H
J
K
M
N

BLOCK 4

F
Q

BLOCK 5

B
C
J
M
P
Y
Z

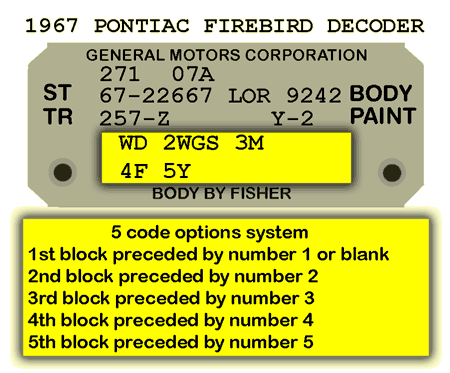

Trim tag decoder 1967 firebird 5 code under hood data plate list:






1st Group (Digit not shown) D.... Power Convertible Top E.... Soft-ray Tinted Glass (All Windows) L.... Folding Rear Seat (Firebird) O.... Two-tone Paint (Chrome separator strip) T.... Power Seat - bucket, left seat only V.... Remote Control Deck Lid Release W.... Soft-ray Tinted Glass (Windshield Only) X.... Power Windows Y.... Power Seat - Bench 2nd Group (2) A.... Foam Bench Seat Cushion B.... 3-spd Manual Transmission Floor Shift C... ??? E.... Air Conditioning, diff ducting F.... ??? G.... Console H.... Heater Delete K.... A/C L.... 4-spd Manual Transmission Floor Shift R.... Rear Seat Speaker S.... Rear-mounted Manual Antenna T.... Rear-mounted Power Antenna U.... Stereo 8 Track Tape System V.... Verba-Phonic Rear Speaker W.... 2-spd Automatic Transmission Z.... 3-spd Automatic Transmission 3rd Group (3) B.... Rear Window Defogger C.... ??? D.... ??? F.... 400 Option H.... Rally Stripe J.... custom option (?) K.... Dome Courtesy Lamp M.... 326 HO Option N.... Roof Rail Reading Lamps W.... ??? 4th Group (4) F..... Outside Remote Control Mirror Q.... Full size Spare Tire 5th Group (5) B.... Luggage Light (KAN plant only) C.... Shoulder Belts, Front Seat J.... Under hood Light M.... Rear Center Seat Belt P.... Luggage Light (FRA and PON plants) Y.... Deluxe Front Seat Belts Z.... Shoulder Belts, front seat
